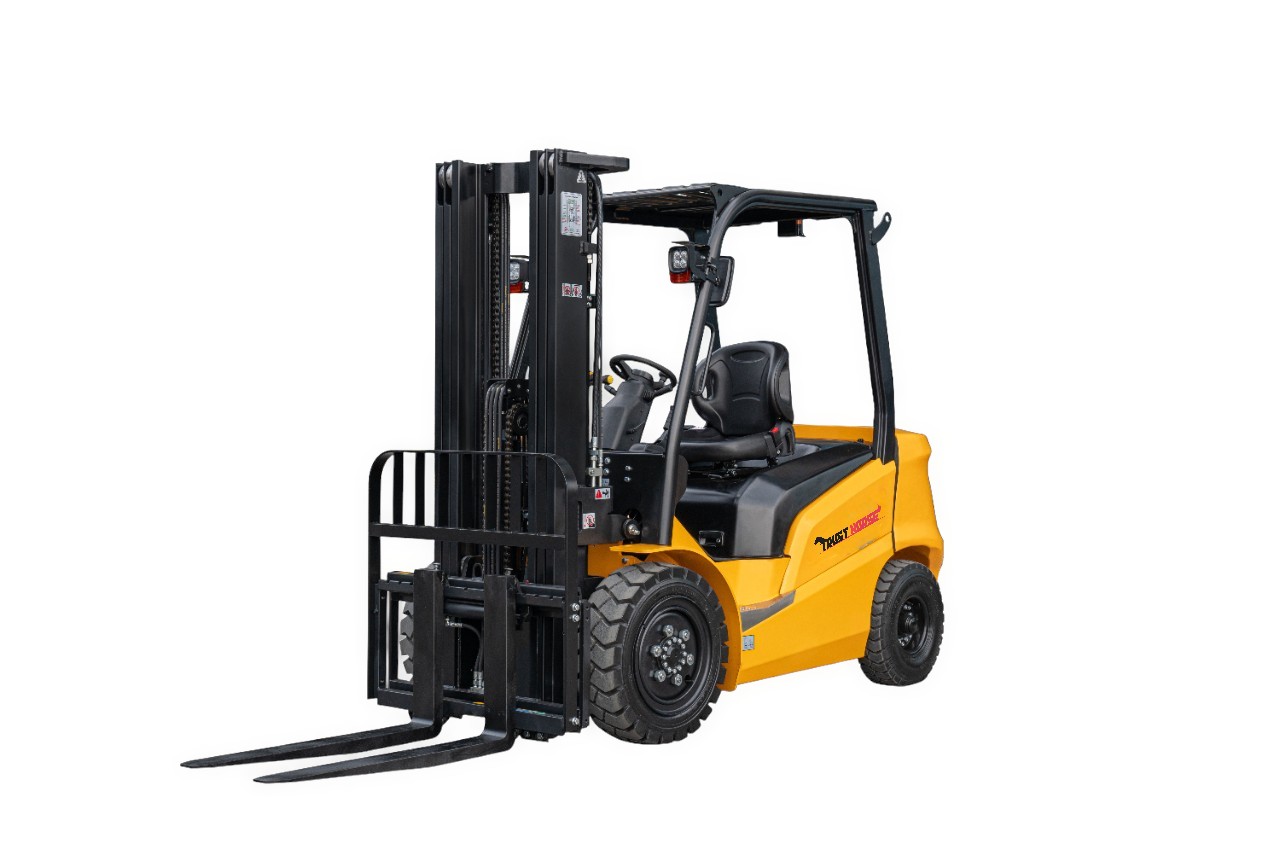

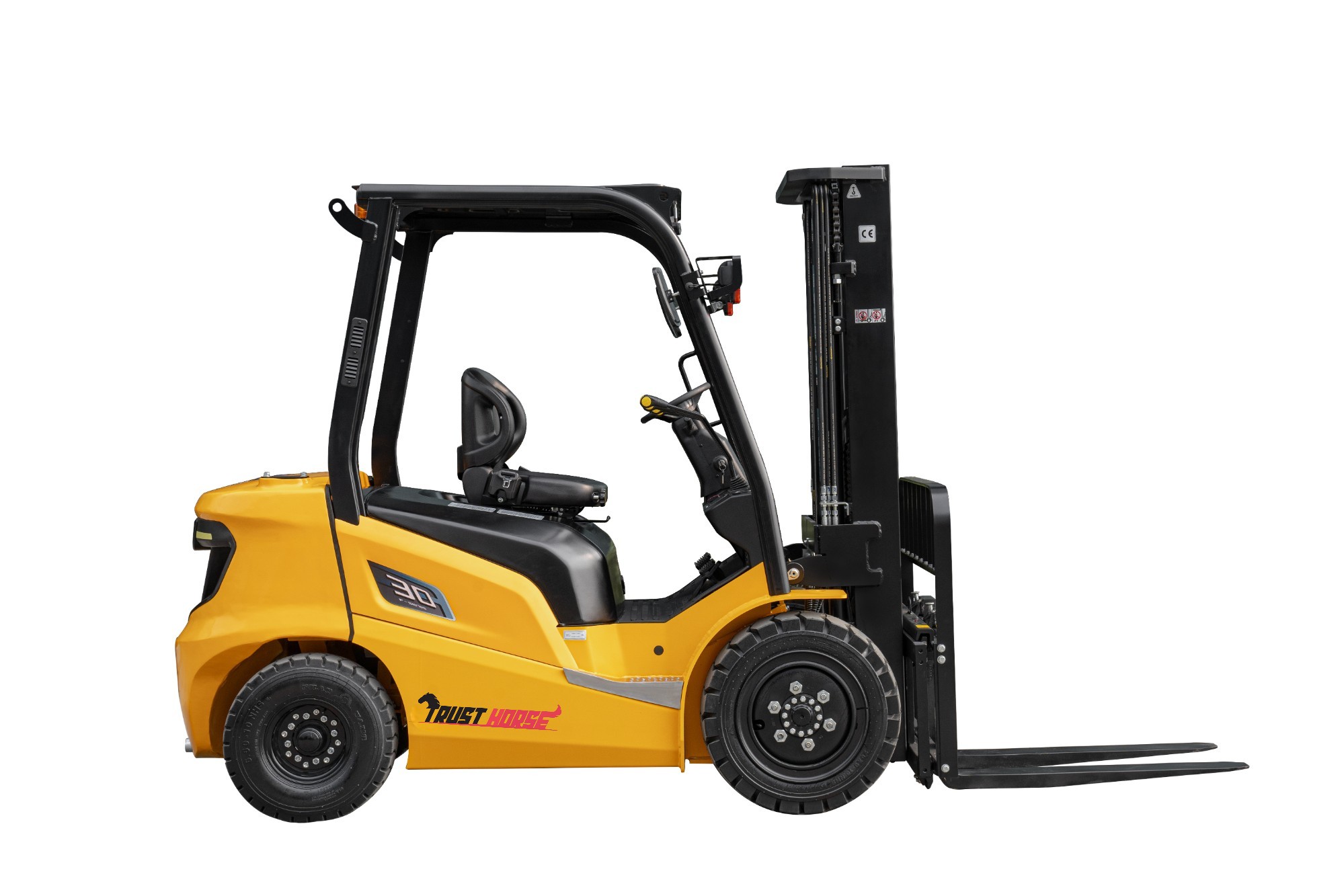

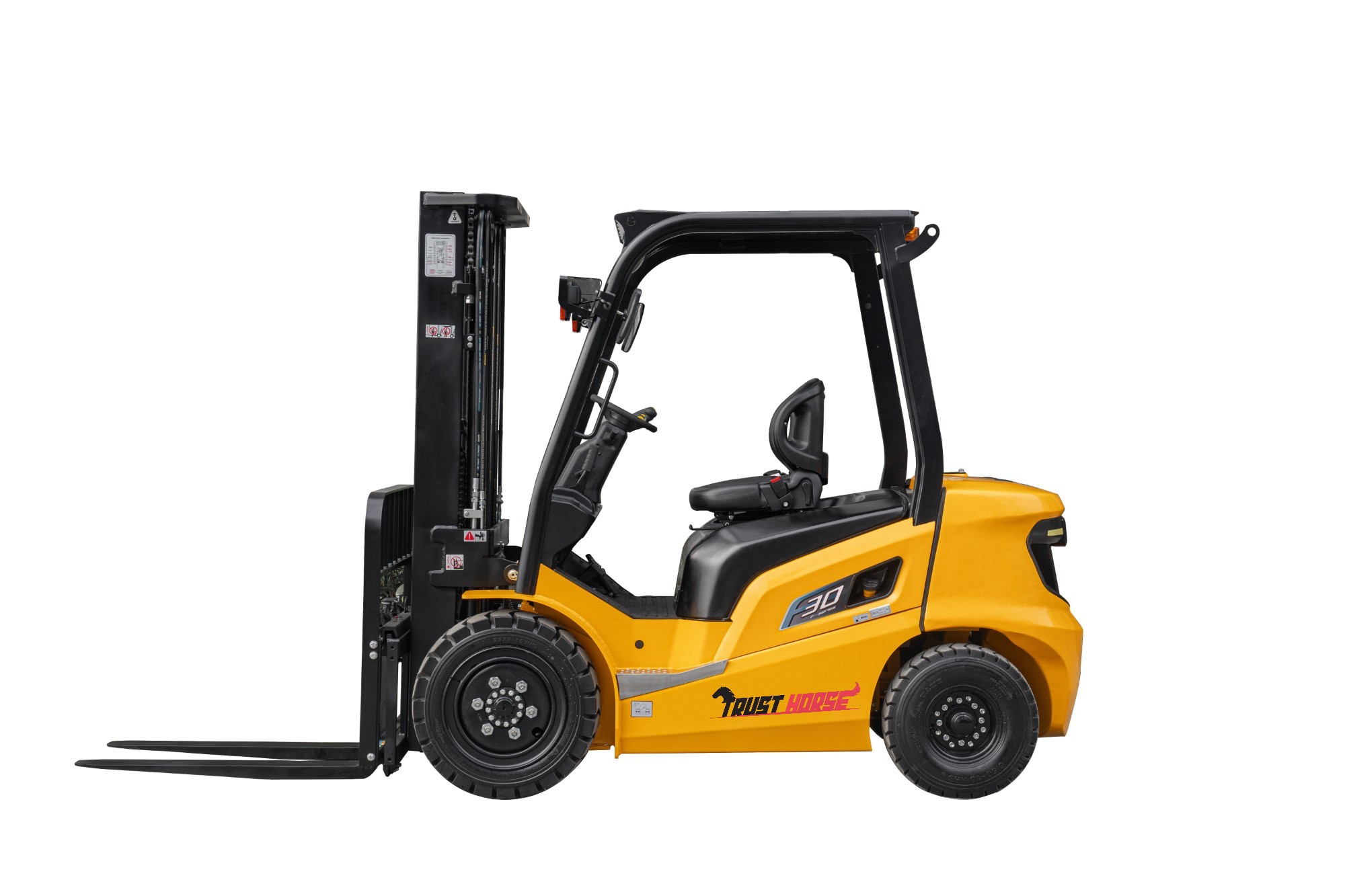

General Information
- Model: FD20T-XJM3/ FD20T-XJV2/ FD25T-XJM3/ FD25T-XJV2/ FD30T-XJM3/ FD30T-XJV2/ FD35T-XJV2/ FD35T-XJV2
- Lifting capacity: 2.000kg/ 2.500kg/ 3.000kg/ 3.500kg
- Maximum lifting height: 6.000mm
Appearance
- This series has smooth and streamlined body, giving a more powerful look. The sharp edges and contrast color design of the counterweight make it more attractive.

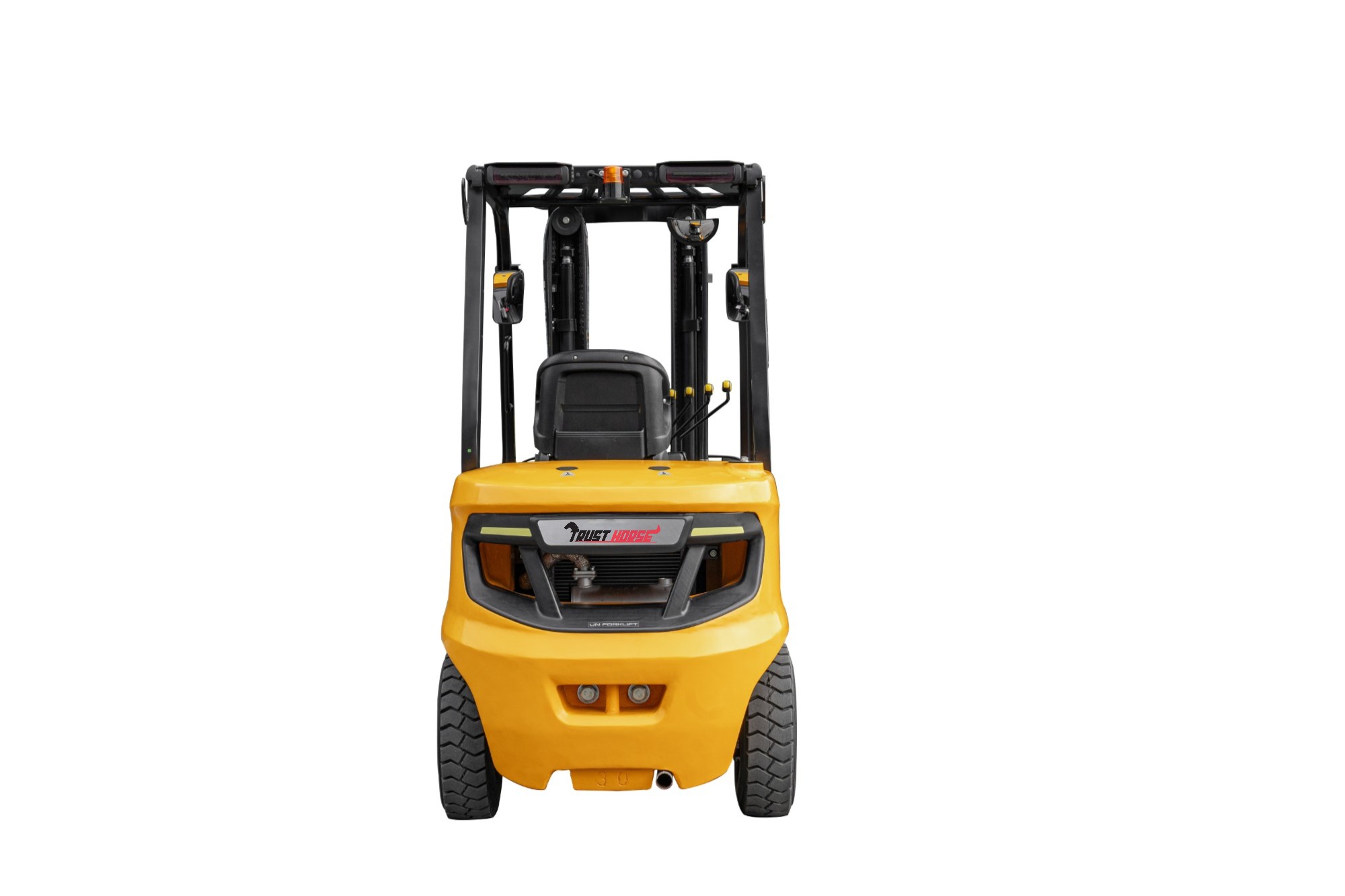

- The electrical system utilizes dynamic LED taillights, imparting a futuristic and highly technological appeal to the vehicle, creating a strong visual impact.
High Performance
- Using internationally renowned Stage V/Tier4F, Mitsubishi 4EG, Kubota and GCT engines.
- Utilizing the new narrow-groove steel mast to reduce the overall vehicle weight & enhance visibility.

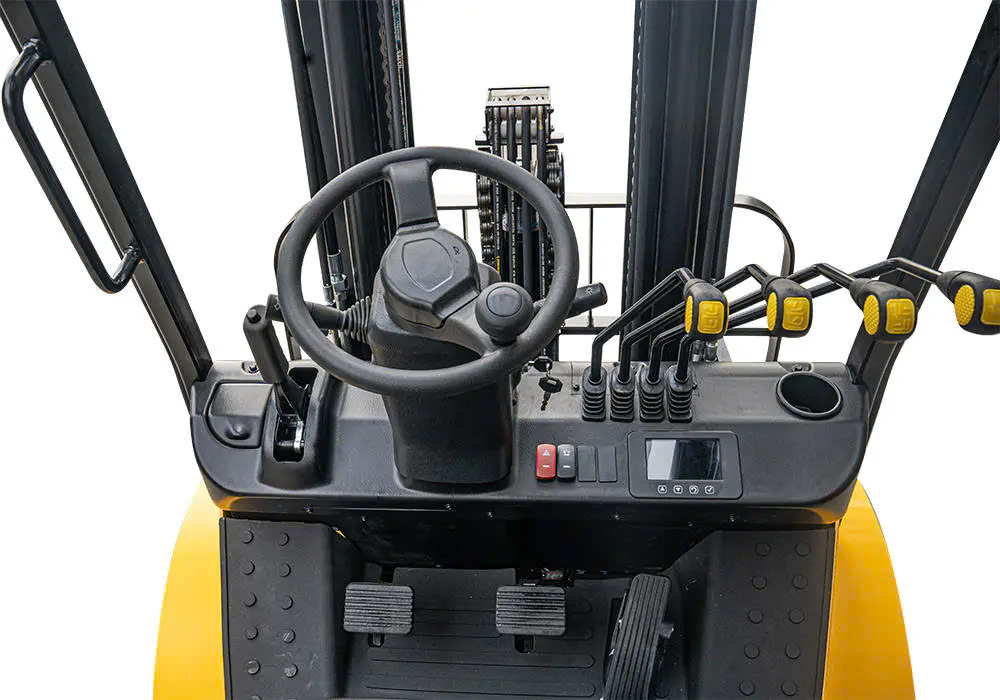

- Equipped with an interactive dashboard as standard for real-time monitoring.
- New generation LED lighting system.
- Load sensing steering system.
Safety & Reliability
- The stamped overhead guard offers increased durability and reliability.
- All key connectors and joints are waterproof.
- The OPS system effectively prevents unintended forklift startup.
Superior Ergonomics

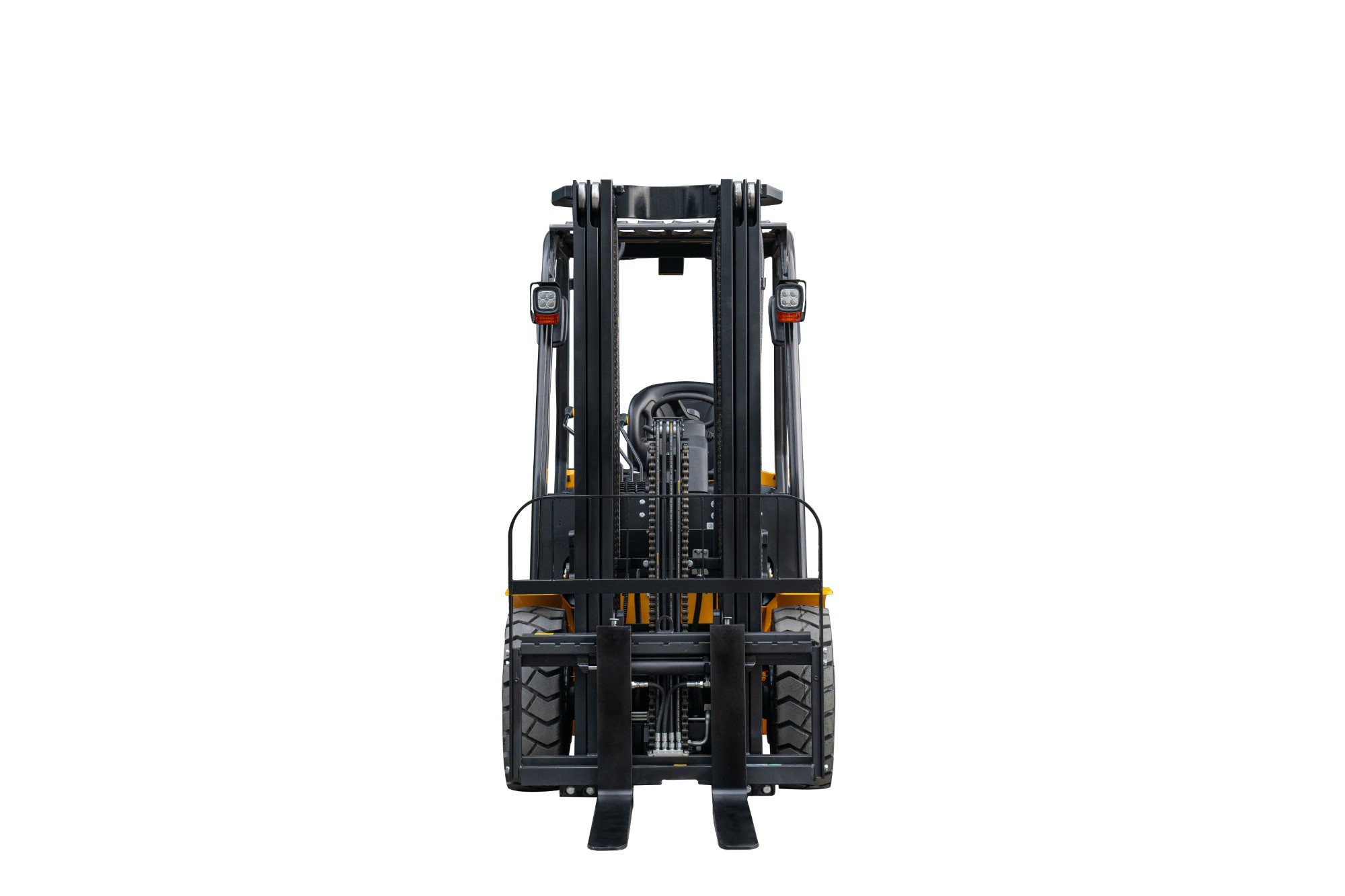

- Wide-view mast provides a broader vision.
- Implementing a suspended seat has reduced vibrations.
- The spacious foot space provides easy access for getting on and off.
- The adjustable steering column equip with a small steering wheel for more effortless operation.
- Adopting a new type of ratchet handbrake, effectively reducing operating force.
Easy Maintenance
- The detachable side panels make maintenance and cleaning more convenient.

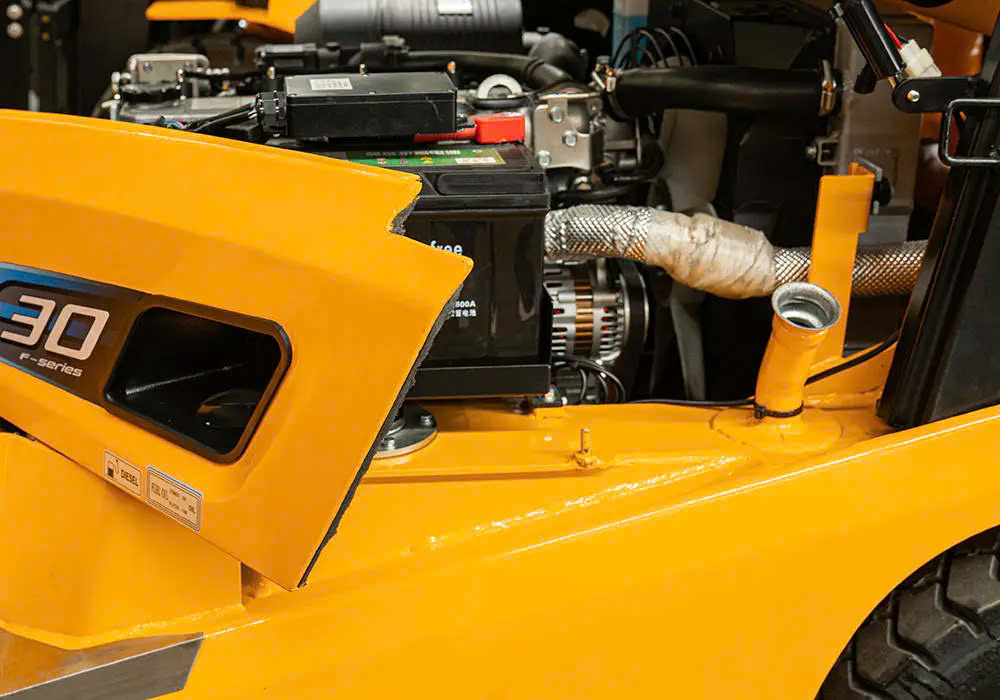

- The large opening angle of the engine hood makes maintenance easier.
Technical specifications
| General | Manufacturer | TRUST HORSE | ||||||||
| Model | FD20T-XJM3 | FD20T-XJV2 | FD25T-XJM3 | FD25T-XJV2 | FD30T-XJM3 | FD30T-XJV2 | FD35T-XJV2 | FD35T-XJV2 | ||
| Power Type | Diesel | |||||||||
| Rated Load Capacity | Q(kg) | 2000 | 2500 | 3000 | 3500 | |||||
| Load Centre | C(mm) | 500 | 500 | 500 | 500 | |||||
| Characteristic & Dimension | Rated Lift Height | H3(mm) | 3000 | 3000 | 3000 | 3000 | ||||
| Free Lift Height | H2(mm) | 140 | 140 | 125 | 150 | |||||
| Fork Size (L×W×T) | mm | 1070×120×40 | 1070×125×45 | 1070×125×50 | ||||||
| Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
| Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 460 | 460 | 470 | 480 | |||||
| Rear Overhang | X2(mm) | 520 | 520 | 530 | 600 | |||||
| Ground Clearance (Bottom of Mast) | H7(mm) | 110 | 110 | 125 | 125 | |||||
| Length to Face of Fork (Without Fork) | L1(mm) | 2630 | 2630 | 2700 | 2780 | |||||
| Overall Width | B1(mm) | 1170 | 1170 | 1220 | 1225 | |||||
| Mast Lowered Height | H1(mm) | 2055 | 2055 | 2060 | 2070 | |||||
| Mast Extended Height (With Backrest) | H4(mm) | 4070 | 4070 | 4150 | 4070 | |||||
| Overhead Guard Height | H5(mm) | 2215 | 2215 | 2190 | 2235 | |||||
| Turning Radius (Outside) | Wa(mm) | 2365 | 2365 | 2450 | 2500 | |||||
| Min. Aisle width for pallets | Ast(mm) | 4120 | 4120 | 4120 | 4255 | |||||
| Performance | Travel Speed (No Load) | km/h | 19 | 19 | 19 | 19 | ||||
| Lifting Speed (Full Load) | mm/sec | 510 | 510 | 430 | 400 | |||||
| Lowering Speed(Full Load/No Load) | mm/sec | No Load≥300 Full Load≤600 | No Load≥300 Full Load≤600 | |||||||
| Max.Drawbar Pull (Full Load/No Load) | KN | 17/14.5 | 26/21 | |||||||
| Max.Gradeability (Full Load) | % | 20 | ||||||||
| Chassis | Tyre (Front x 2) | mm | 7.00-12-12PR | 28×9-15-12PR | ||||||
| Tyre (Rear x 2) | mm | 6.00-9-10PR | 6.50-10-10PR | |||||||
| Front Tread | B2(mm) | 970 | 970 | 1000 | 1000 | |||||
| Rear Tread | B3(mm) | 980 | 980 | 980 | 980 | |||||
| Wheelbase | Y(mm) | 1650 | 1650 | 1700 | 1700 | |||||
| Weight | Total Weight | kg | 3620 | 3860 | 4460 | 4775 | ||||
| Front Axle Weight Distribution (Full Load) | kg | 5058 | 5724 | 6714 | 6997 | |||||
| Rear Axle Weight Distribution (Full Load) | kg | 562 | 636 | 746 | 777 | |||||
| Front Axle Weight Distribution (No Load) | kg | 1450 | 1545 | 1784 | 1910 | |||||
| Rear Axle Weight Distribution (No Load) | kg | 2170 | 2315 | 2676 | 2865 | |||||
| Power & Transmission | Battery | V/Ah | 12/90 | |||||||
| Engine Model | D04EG | V2403 | D04EG | V2403 | D04EG | V2403 | D04EG | V2403 | ||
| Engine Manufacturer | MITSUBISHI | KUBOTA | MITSUBISHI | KUBOTA | MITSUBISHI | KUBOTA | MITSUBISHI | KUBOTA | ||
| Rated Output / r.p.m. | kw | 36/2250 | 42.6/2400 | 36/2250 | 42.6/2400 | 36/2250 | 42.6/2400 | 36/2250 | 42.6/2400 | |
| Rated Torque / r.p.m. | N·m | 177/1800 | 195.6/1500 | 177/1800 | 195.6/1500 | 177/1800 | 195.6/1500 | 177/1800 | 195.6/1500 | |
| No.of Cylinder | 4 | |||||||||
| Bore x Stroke | mm | 94x120 | 87x102.4 | 94x120 | 87x102.4 | 94x120 | 87x102.4 | 94x120 | 87x102.4 | |
| Displacement | cc | 3331 | 2434 | 3331 | 2434 | 3331 | 2434 | 3331 | 2434 | |
| Fuel Tank Capacity | L | 50 | ||||||||
| Transmission Type | HYDRAULIC | |||||||||
| Transmission Stage (FWD/RVS) | 1/1 | |||||||||
| Operating Pressure (For Attachments) | Mpa | 18.5 | ||||||||
