Specifications

• Max dimension: 5000 mm wide, 5000 mm high
• Max opening spped: 2.5 m/s
• Max closing speed: 1 m/s
• Wind resistance: Beaufort scale 12 (35m/s)
• Working life: 15 years
• Power supply: 1-phase 220-15%V or 3-phase 380V-15%V, 50/60Hz
• Protection level of electric: IP55
• Control system: Inverter type or Servo type
• Driving system: Brake motor or Servo motor
• Thermal conductivity factor: 1.9W (m2.K)
• Sound insulation factor: R = 25 dB

Model characteristics

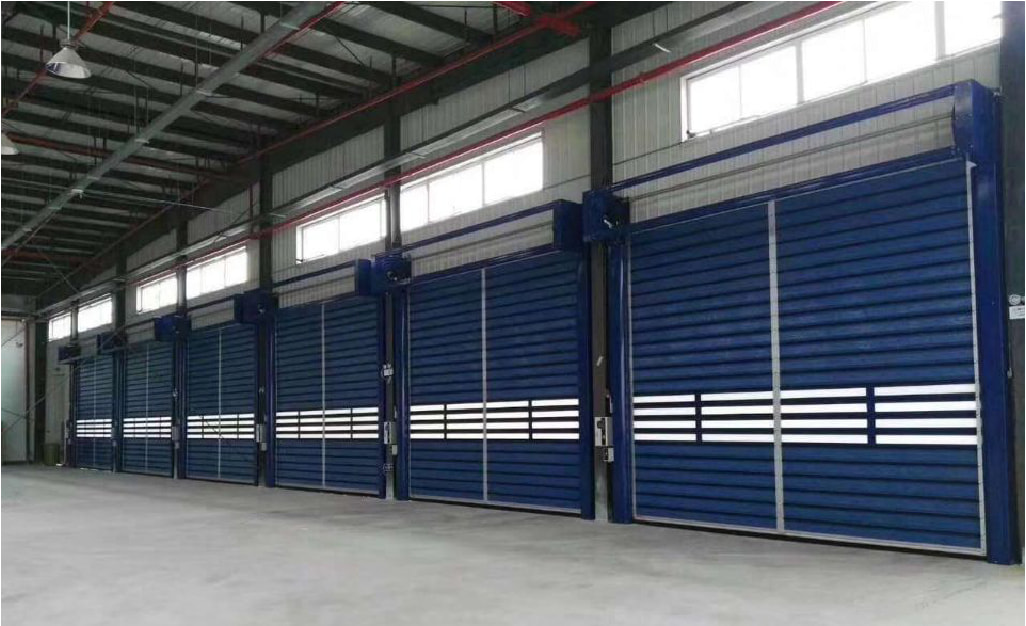

• The slat is high-strength double-layer aluminum alloy panel. Total thickness of it reaches 40mm and inside is filled with polyurethane foam with density of 50 kg/m3. It has good thermal and sound insulation, burglarproof function and wind resistance. It is very suitable as main entrance door of workshops.

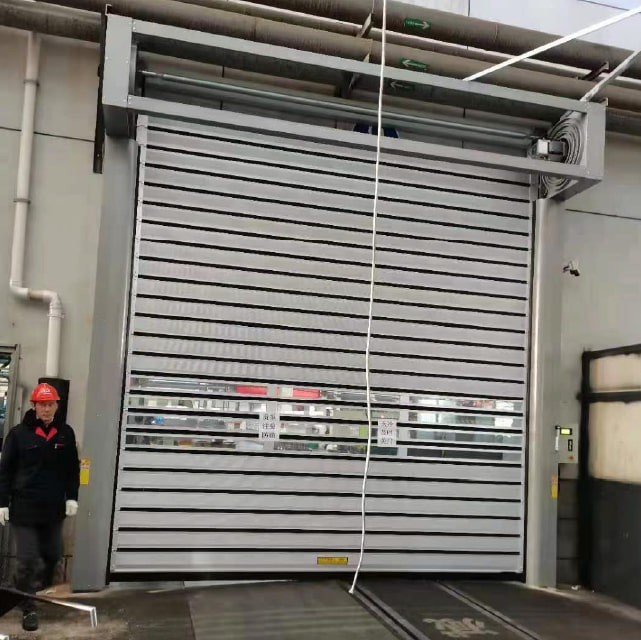

• Spiral shape guide rail. Door panels keeps moving inside it all the way. This eliminates friction among slats, and reduces noise and vibration.
• Torsion pring balance system, inbuilt into the side guide rails. It counteracts the door weight and prolongs working life of motor by reducing its load.
• Emergency release device. The door can be easily opened with this device, under emergency situations like power failure or electrical faults. This makes emergency transferring goods or human evacuation possible.

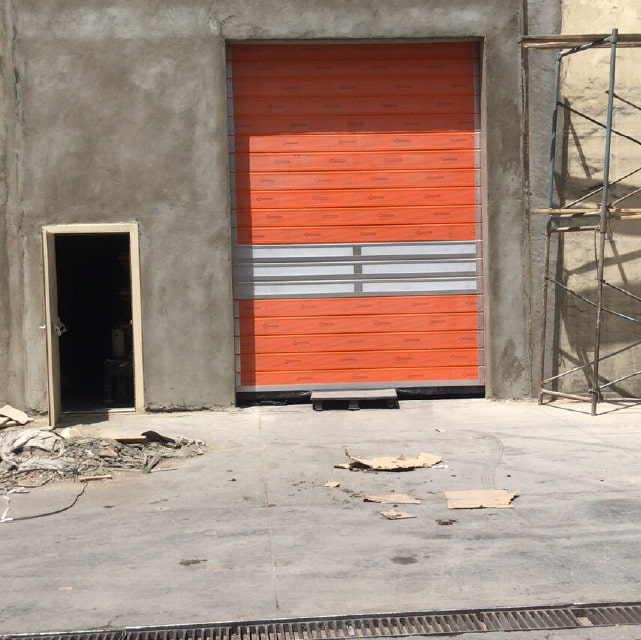

• One or more rows of clear window can be selected, for daylighting or human vision. It is made from polycarbonate board, with effective ultraviolet isolation.

Multiple additional operation methods available:

1. Radar
2. Vehicle loop detector
3. Remote control
4. Pull-cord switch
5. Interlocking
