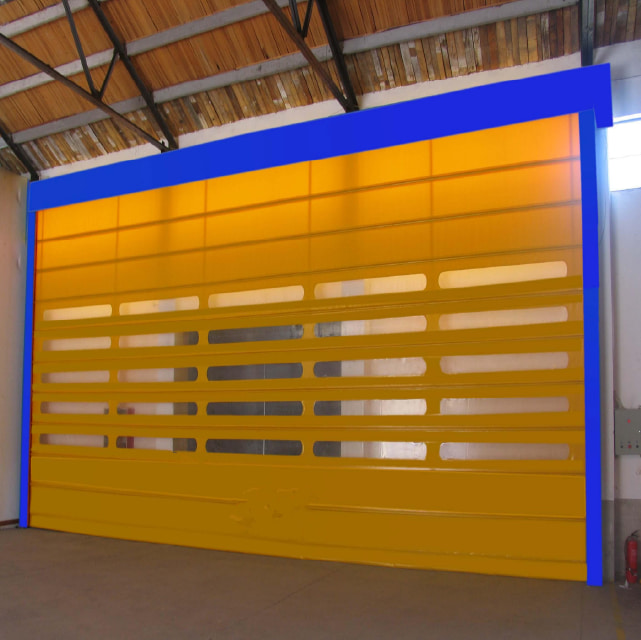

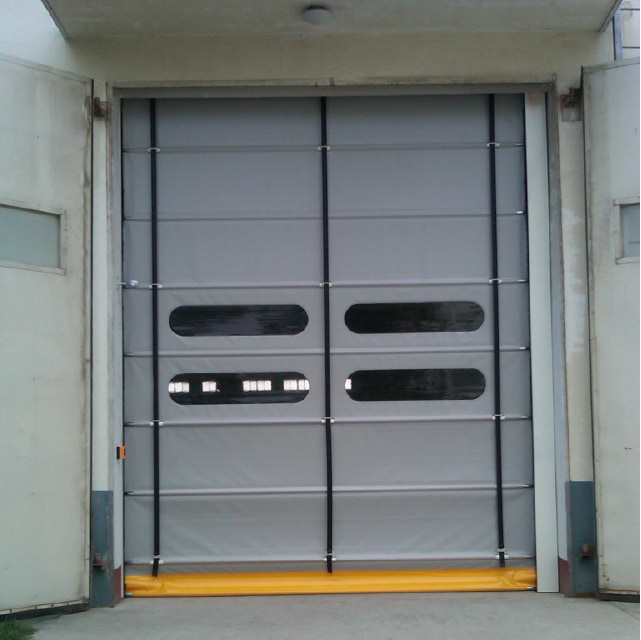

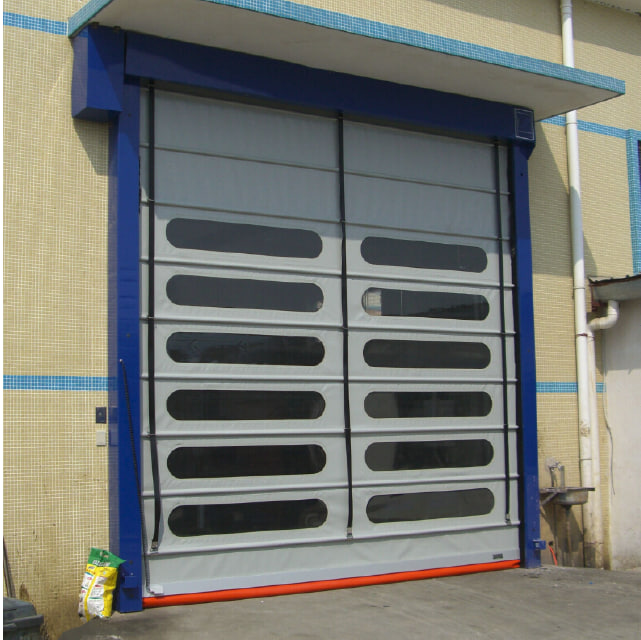

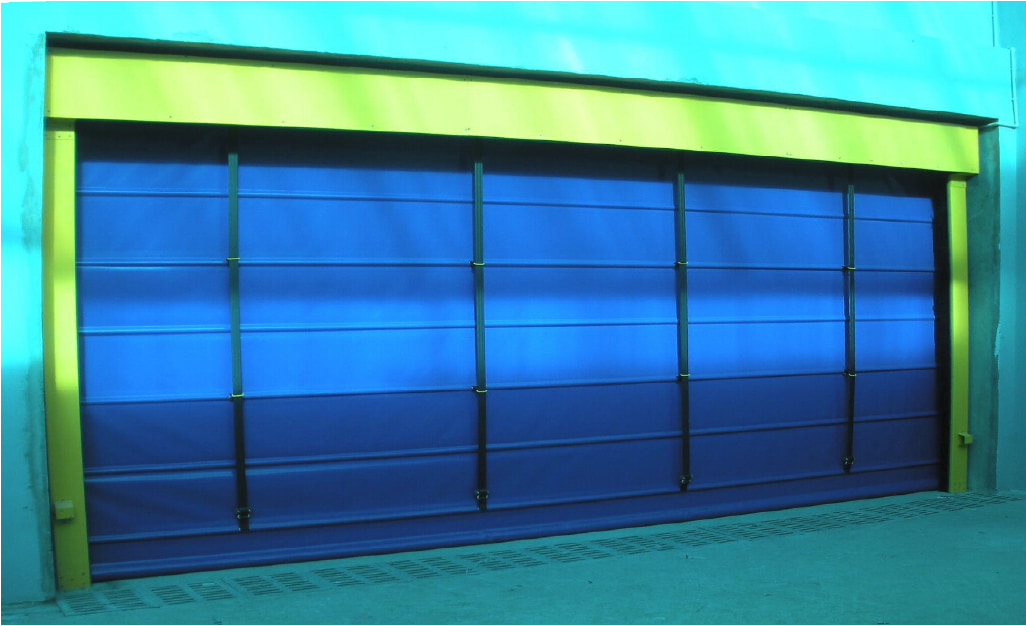

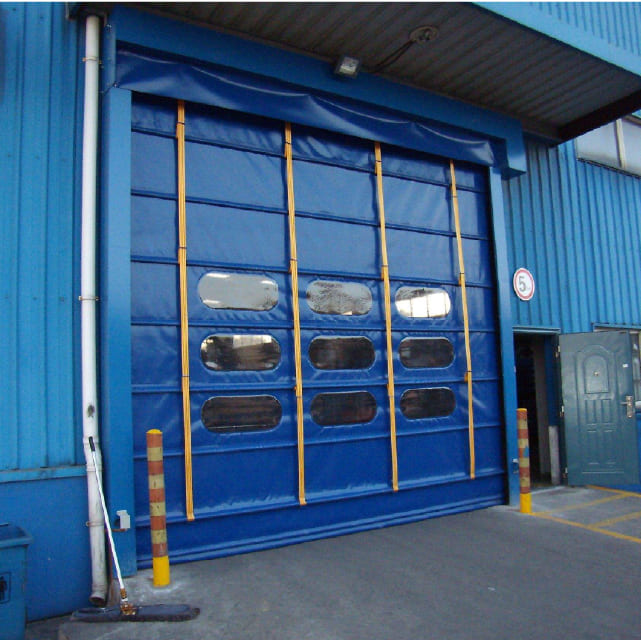

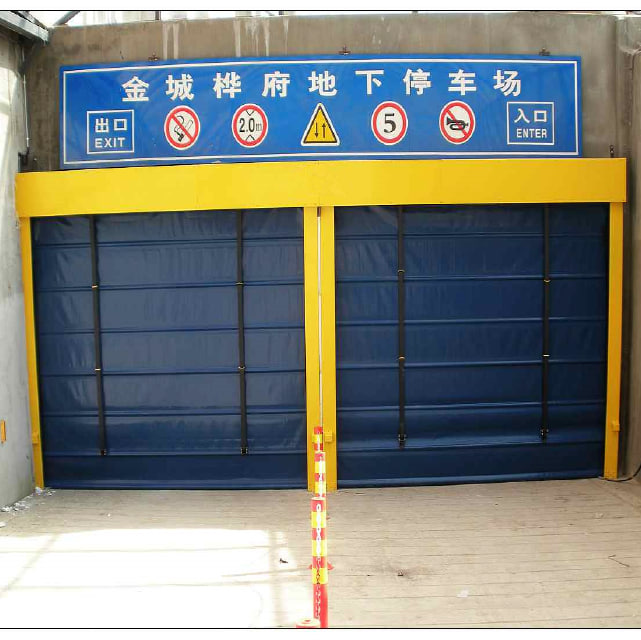

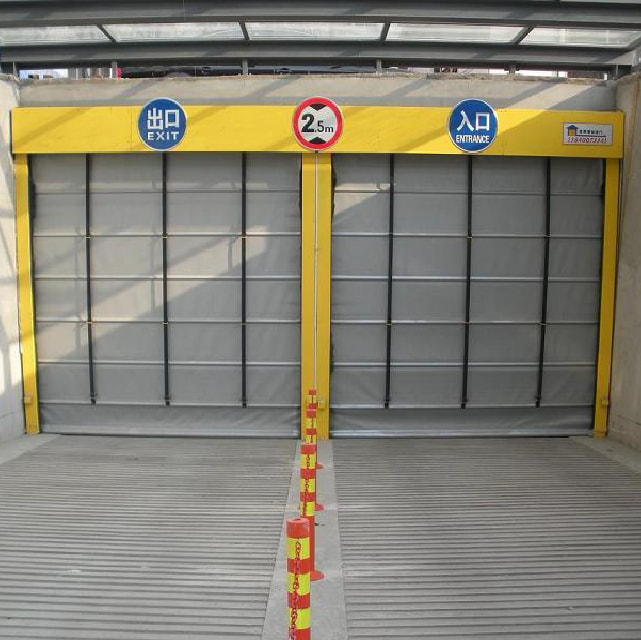

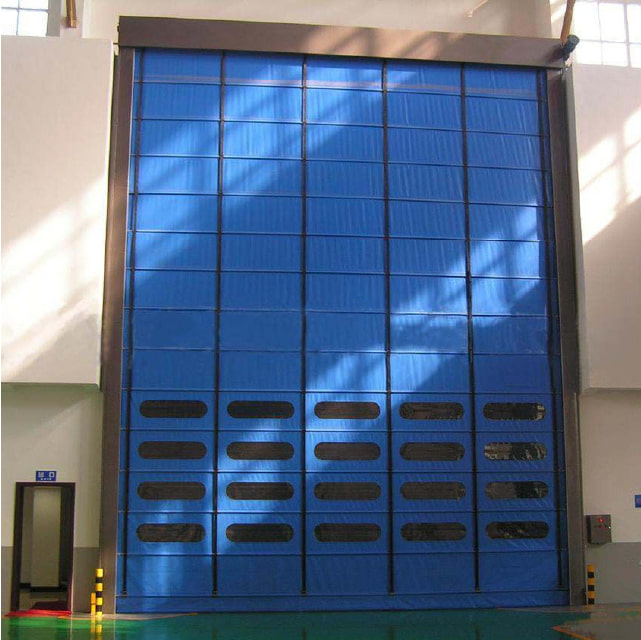

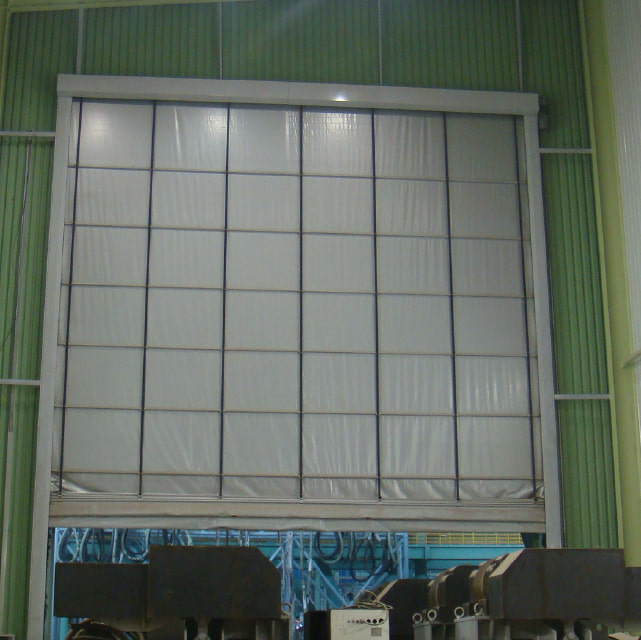

This model is with excellent wind-resistant performance, fit for areas with big wind pressure and door hole sizes. Several high-strength aluminum rod is used to connect PVC fabric as a whole. When faced with big wind, such rods will offer big support. Special belt structure is adopted to lift door up and down by revolving roller.
Specifications
- Max dimension: 8000 mm wide, 7000 mm high
- Max opening speed: 1.0 m/s
- Max closing speed: 0.7 m/s
- Wind resistance: Beaufort scale 12 (35 m/s)
- Work life: 15 years
- Power supply: 1-phase 220 ± 15%V or 3-phase 380 ± 15%V, 50/60Hz
- Protection level of electric: IP55
- Available colors of fabric: Yellow, Blue, Red, Grey, White
Model characteristics
- High speed opening and closing: The running speed can reach 2 m/s, 10 times as traditional roller shutter door. This obviously improves passing effciency through it and enhances overall output.
- High frequency operation: The operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.
- High-level automation: Automatic radar or other devices can be equipped, realizing auto control of the door. This enhances automation level and work efficiency.
- Excellent safety performance: Dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles.
- Effective insulation: Benefiting from fast opening and closing, it can reduce the air flow between indoor and outdoor and prevent dust from entering the room. At the same time, energy is saved by reducing thermal conduction.
- Complying with GMP norm: Special design seal strcuture. PVC fabric is dust-proof and easy for cleaning.
