General Information

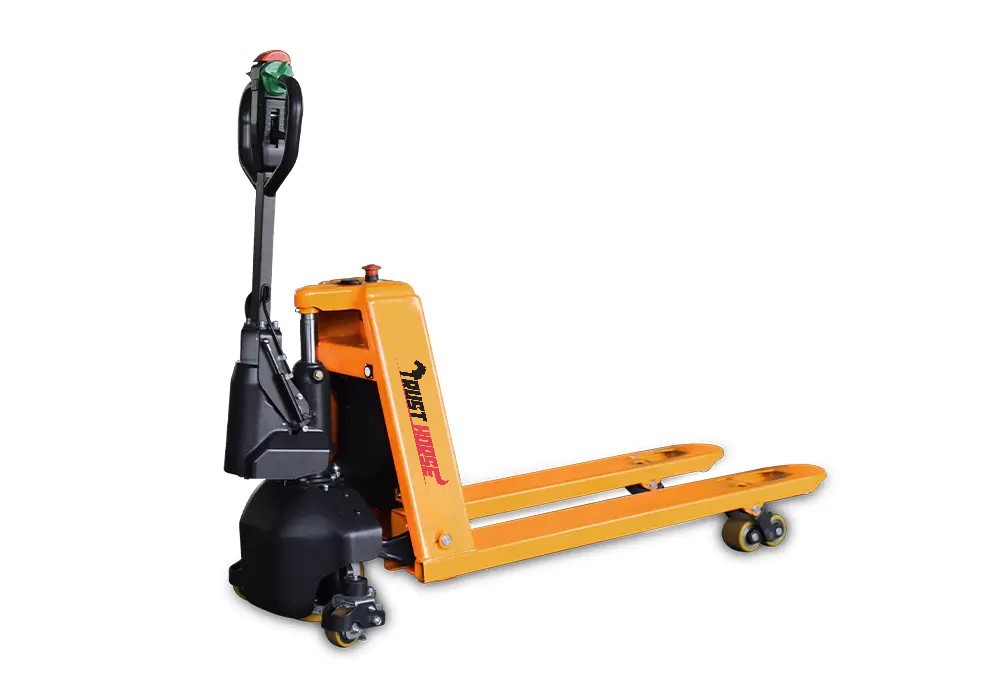

The PTE15-C pallet trucks are the smart design best value electric and semi-electric pallet trucks which is perfect alternative to hand pallet trucks, it will increase the material handling efficiency and bring down the total cost esp. the labor involved.

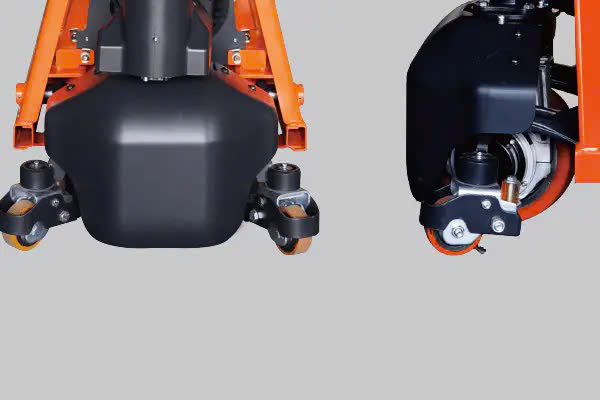

Suspension Castor
- Optional bigger castor with excellent stability.
Drive system
- 48V DC brushless motor, maintenance free, big transmission ratio gearbox, high grade-ability, low energy consumption.

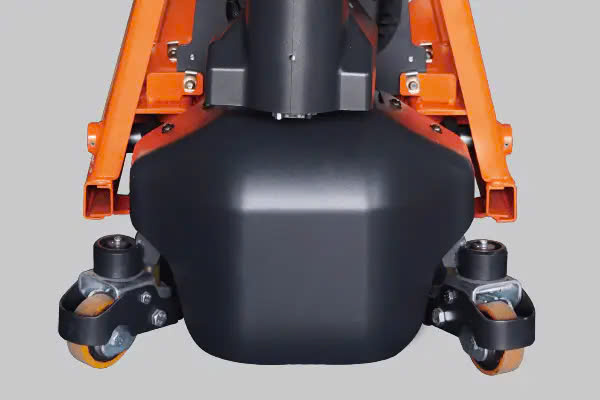

Fully enclosed drive wheel cover
- Rigid and robust fully enclosed drive wheel cover gives all-round foot protection for operator.
Emergency switch
- Emergency switch located where you can easily reach and control, assuring safety for people and truck.
Multi-functional combo gauge
- Integrated with on/off button, battery discharge indicator, fault code, speed setting etc.

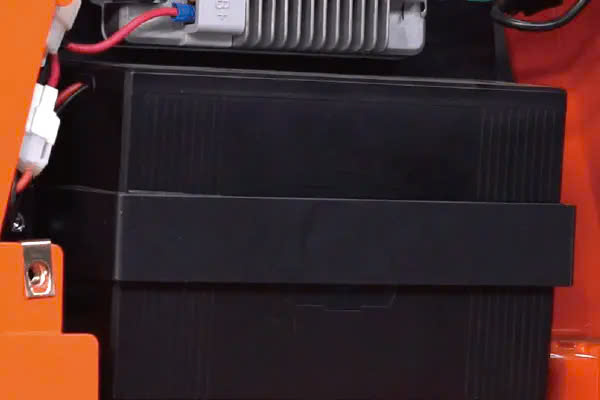

Lithium Iron Phosphate Battery
- 48v LFP battery, easy replacement, low energy consumption, long working time, safer and stable cell with long service life.

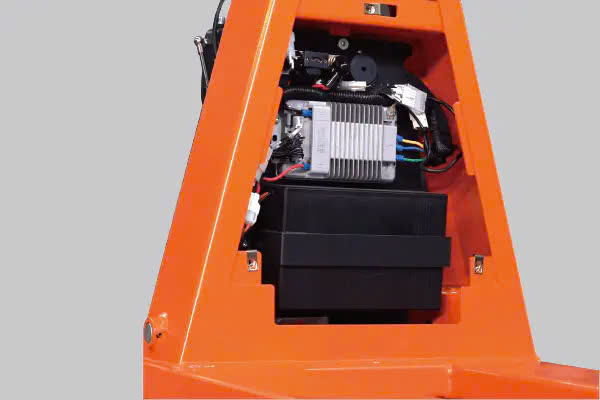

Controller kit
- One piece design allows for easy installation, maintenance and replacement.
Technical Information
|
Distinguishing mark |
||||
|
1.2 |
Manufacturer's type designation |
|
PTE15-C |
SPTE15-C |
|
1.3 |
Drive |
|
Battery |
Battery |
|
1.4 |
Operator type |
|
Pedestrian |
Pedestrian |
|
1.5 |
Load Capacity / rated load |
Q(t) |
1.5 |
1.5 |
|
1.6 |
Load centre distance |
c (mm) |
600 |
600 |
|
1.7 |
Load distance, centre of drive axle to fork |
x (mm) |
950 |
950 |
|
1.8 |
Wheelbase |
y (mm) |
1200 |
1200 |
|
Weight |
||||
|
2.1 |
Service weight |
kg |
130 |
130 |
|
2.2 |
Axle loading, laden front/rear |
kg |
570/ 1060 |
570 / 1060 |
|
2.3 |
Axle loading, unladen front/rear |
kg |
100/30 |
100/30 |
|
Tires, chassis |
||||
|
3.1 |
Tires |
|
Polyurethane |
Polyurethane |
|
3.2 |
Tire size, front |
∅xw (mm) |
∅210x70 |
∅210x70 |
|
3.3 |
Tire size, rear |
∅xw (mm) |
∅80x93 / ∅80x70 |
∅80x93 / ∅80x70 |
|
Dimensions |
||||
|
4.1 |
Lift |
h3 (mm) |
115 |
115 |
|
4.2 |
Height, lowered |
h13 (mm) |
80 |
80 |
|
4.3 |
Overall length |
l1(mm) |
1595 |
1595 |
|
4.4 |
Overall width |
b1 (mm) |
540/685 |
540 / 685 |
|
4.5 |
Fork dimensions |
s/e/l (mm) |
47/ 160/ 1150 |
47/160/1150 |
